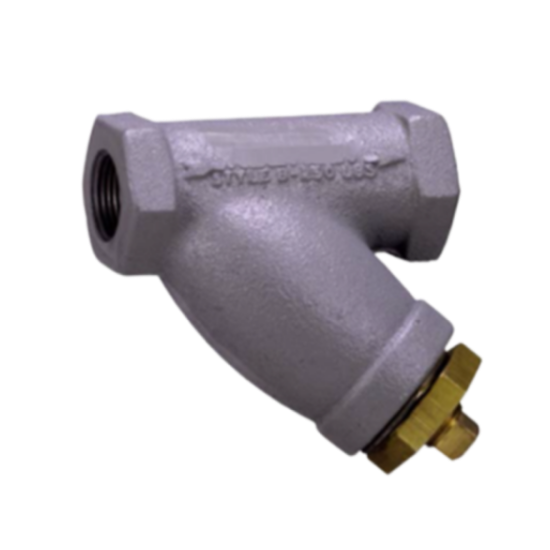

FISHER™ 262K Filter

FISHER™ 377 Trip Valve

FISHER™ VBL Volume Booster

FISHER™ 2625 Volume Boosters

FISHER™ SS-263 Flow Amplifier

FISHER™ 262K Filter

Main Features

Excellent Filtration: —Resin‐impregnated cellulose filter captures particles as small as 40 microns.
Application Flexibility—Versatility, reliability, and ease of maintenance permits meeting needs of virtually all users of pipelines carrying liquids, gases, or vapors.

FISHER™ 262K Filter

Specifications

Filter size:3/4"
End connections: 3/4 NPT screwed
Maximum inlet and outlet pressures: cast iron 28 bar at 65°C (400 psig at 150°F)

Stainless Steel 41 bar at 65°C (600 psig at 150°F)

Temperature: cast iron -28 to 208°C(-20 to 406°F)

Stainless Steel -54 to 208°C(-65 to 406°F)

Material:cast iron/stainless steel (CF8M)

Applications

Designed to remove dirt, scale, and other solid substances from the air supply to actuators and instruments.
