Style B Globe Valve

A wide range of globe valves specifically designed for high pressure and high temperature applications, where low pressure loss is required.

Main Features

Seat is welded-in
Position indicator is offered as standard
Stellite® gr.6 overlay on seat and disc; Stellite gr.21 overlay on bonnet.
Available options: parabolic disc, low emission packing, equalizing and overpressure pipe, limit switch in open or close position

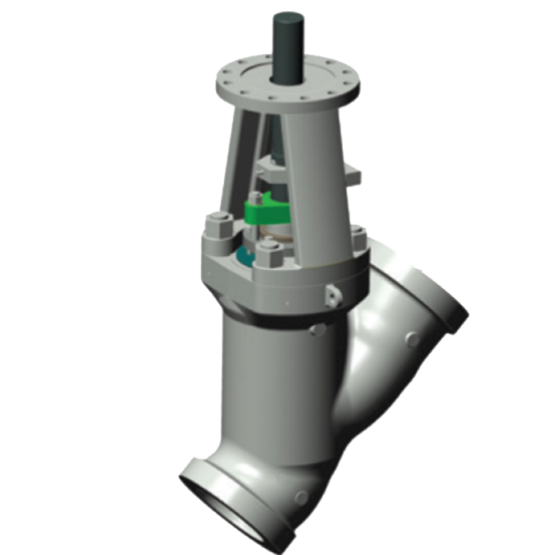

Style B Globe Valve

Specifications

Valve sizes: DN 50 to 600 or larger (NPS 2-24)
Temperature range: -46°C to + 650°C
Pressure Rating: Type Y - ASME Class 1500, 2500
Type T - ASME Class 600, 900, 1500, 2500
Valve Body Materials: All casting materials specified in ASTM standards are available

Solutions

Our pressure seal globe valves are recommended for a wide range of very high pressures and temperature applications: steam, oil and gas processing, chemical and petrochemical industry and in the power industry.
These valves are ideally suited in applications requiring tight shutoff.
