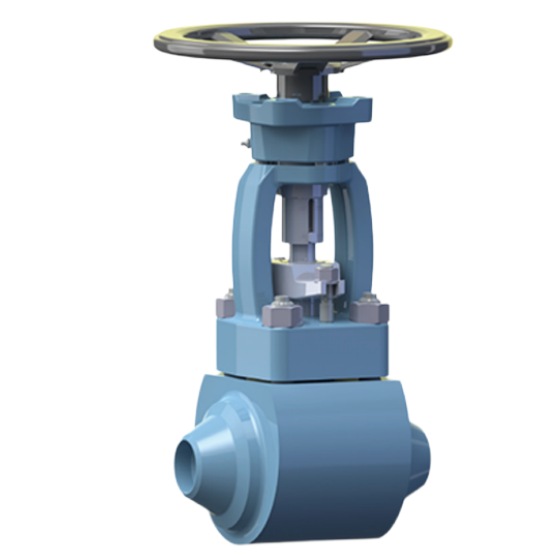

VR540 High Pressure Isolation Valve

Main Features

T-Pattern globe type
Body made of forged steel
Wear resistant stellite body seat
Conical seat with line contact sealing
Visual position indicator
Non-rising hand wheel
Prepared for later automation
Low pressure loss due to optimized flow path
Small driving forces
Easy maintenance
Code compliance with ASME B16.34 and PED

Specifications

Valve Size: NPS 2 1/2 to NPS 3
Pressure level: Class 1690 STD/LTD~Class 2680 STD/LTD
Material: SA 105, SA 182 F12, SA 182 F22, SA 182 F347, SA 182 F91, SA 182 F92
Temperature: -29°C to 600°C
Other configurations: Contact us for more information on specifications or options for this product

Applications

Designed for use in high temperature and high pressure systems, this valve complements the VA500 series and provides an economical alternative to standard pressure seal designs.
